Heavy Duty Trailer



Carrist Modular Trailer CTM series can offer you the full range of such reliable equipment, some models from us also can fully combine with such as Goldhofer THP/SL, Cometto MS. Each model has its matching accessories such as gooseneck, drawbar, drop deck, spacer, vessel bridge, and turntable to meet transportation requirements from the different tasks. ing the unlimited ability for platform size and loading capacity, trailers comoption for specialized transport of ODC cargo.



Contact Now E-Mail Telephone WhatsApp
Product Details

CARRIST have provided many heavy duty trailers to 40 countries, we have much more advantages on cost and quality control of heavy lift transport. As a military background manufacturer, the hydraulic modular trailer / multi axles trailers have robust constructions and professional design.

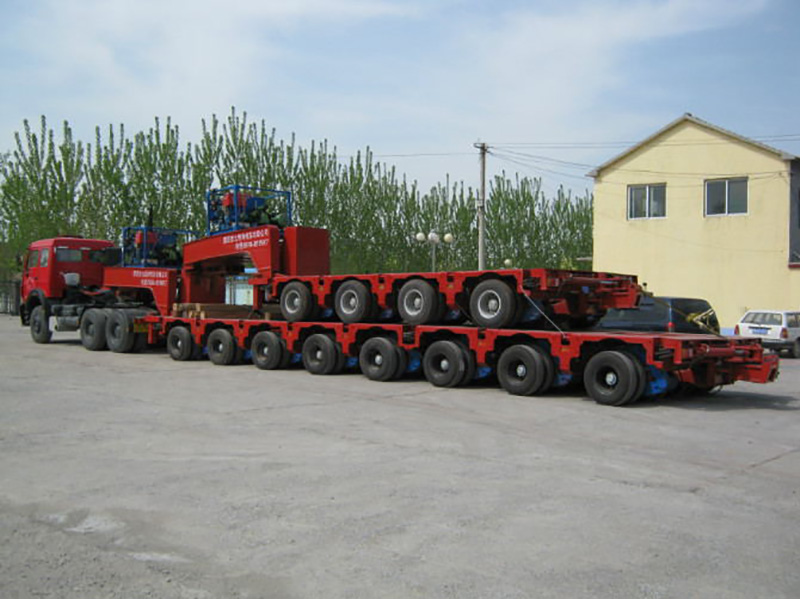

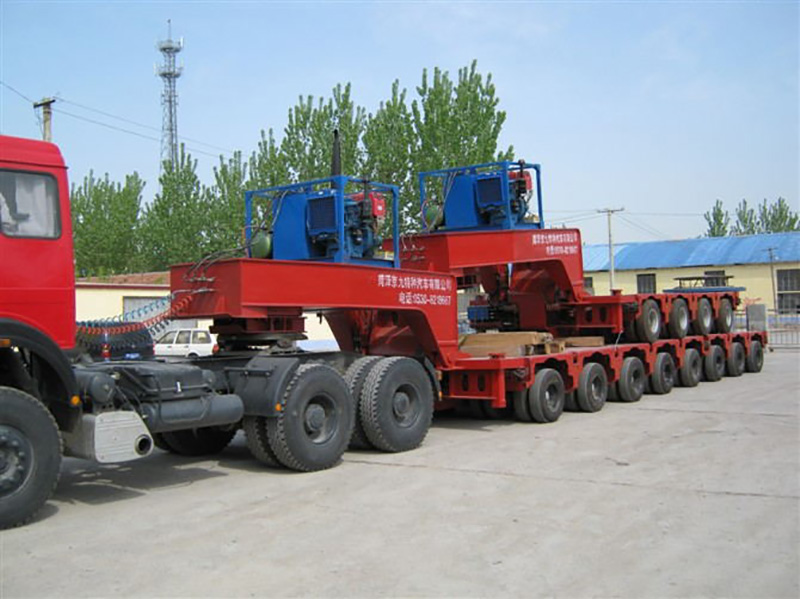

Heavy Duty Trailer  Heavy Duty Trailer


Specifications of Heavy Duty Trailer

Wheelbase (mm)

1550

Quantity of tires

08 tires / axle

Tire specification

215/75R17.5

Rim specification

6.00 – 17.5 (10 holes)

Approach angle (degree)

25°

Departure angle (degree)

30°



Width of Platform (mm)

2990

Height of platform (mm)

1080+ 300

-300

Height of draw rack (mm)


(platform 1080mm)

780

Steering Mechanism

Full hydraulic trail steering

Suspension

Hydraulic Suspension

Support mode of platform

3 and 4 points.

Brake system

Dual pipeline control,

Frame

Flatbed

Module speed (without load) (km/h)

80

Loading ability (tons/axle line)

25T     22.5T     15T

5 Km/h  18Km/h  40Km/h

Total suspension stroke (mm)

600

Maximum steering angle of first wheel

55°

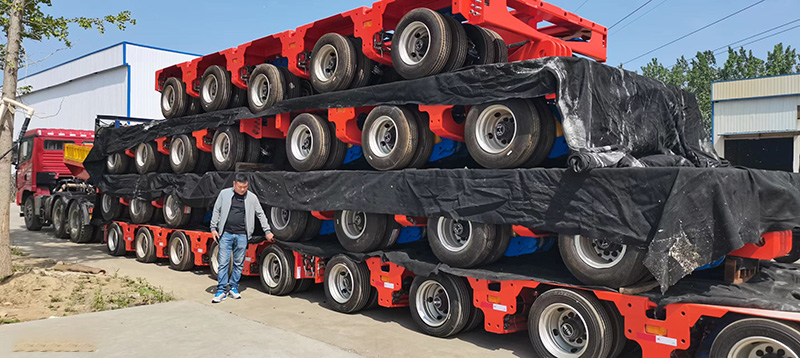

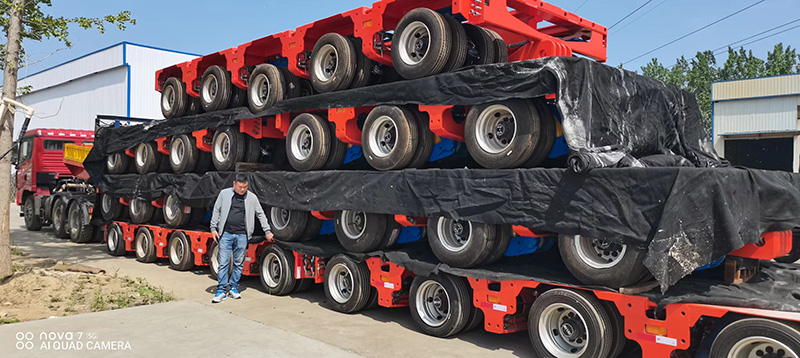

Package and Deliverage of Heavy Duty Trailer

Heavy Duty Trailer


Faqs of  Heavy Duty Trailer


Q:  What is the difference between a modular trailer and a self propelled trailer?

A: Based on the structure of the modular trailer, SPMT is equipped with a power system, and each suspension is changed to an independent suspension. Standardize and modularize the structure shape, and continuously splice the module according to the quality of goods. It integrates computer and micro electric technology, hydraulic technology and wireless communication technology to realize wireless intelligent operation.



Q:  Can modular trailers be customized?

A: Yse, for sure. Modular trailers can be customized.it can be designed to transport of different cargo with its special size. ..., also can meet with client needs to make with different size of module, to achieve for best solution for transport need.



Q:  What is a modular trailer?

A: Modular trailer have 8 tires on each line, every module can be make as 2, 3, 4, 5 and 6 as one unit, which can be spliced longitudinally or horizontally; all axles can steering.


Workshop of Heavy Duty Trailer
