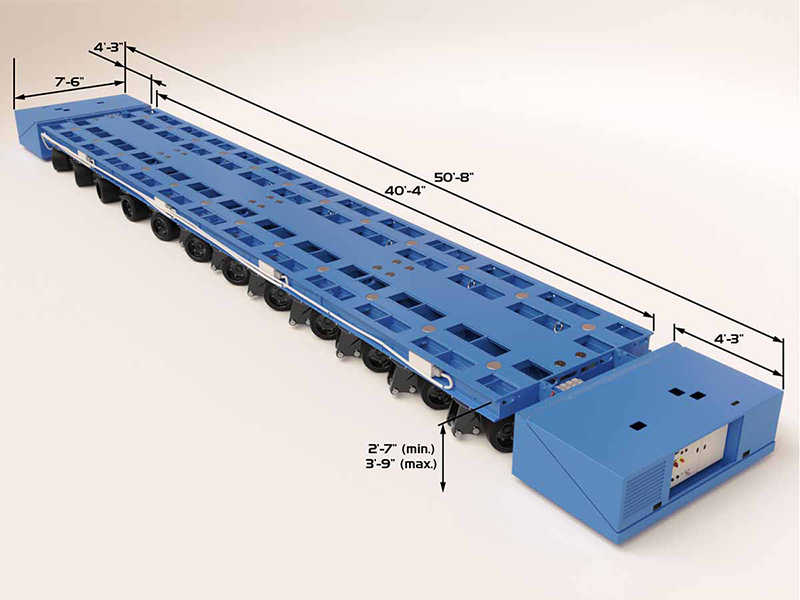

Self Propelled Modular Trailer
• Carrist SPMT (self-propelled modular trailer) standardizes and modularizes the structure shape, and continuously splices the axle according to the quality of cargo. Spmts integrate computer and micro-electric technology, hydraulic technology, and wireless communication technology to realize wireless intelligent operation. Because of its compact structure and standardized module assembly, it can be mechanically spliced and flexibly spliced. In theory, SPMT can be spliced to a bearing capacity of 10 million tons.
Self propelled modular trailer standardizes and modularizes the structure shape, and continuously splices the axle according to the quality of cargo. Spmts integrate computer and micro-electric technology, hydraulic technology, and wireless communication technology to realize wireless intelligent operation. Because of its compact structure and standardized module assembly, it can be mechanically spliced and flexibly spliced. In theory, SPMT can be spliced to a bearing capacity of 10 million tons.
Specification of Self Propelled Modular Trailer
Speed | 5 km/h | 3 km/h | 1 km/h | 0.5 km/h |
Payload (Net load) | 104,000 kg | 112,000 kg | *)128,000 kg | *)144,000 kg |
Dead weight (approx.) | 16,000 kg | 16,000 kg | 16,000 kg | 16,000 kg |
Max. rated total weight | 120,000 kg | 128,000 kg | 144,000 kg | 160,000 kg |
Rated axle load/line | 30,000 kg | 32,000 kg | *) 36,000 kg | *) 40,000 kg |
Loading platform size, L x W | approx. 5,600mmx2,430mm | |||
Loading platform height (Initial position) | approx. 1,150mm | |||
Loading platform height(Driving position) | approx. 1,500mm | |||
Lift / compensation stroke | approx. 700mm (±350mm) | |||
Wheel carrier No. (Total) | 8 sets | |||
Wheel carrier No. (Drive) | 2 sets | |||
Wheel carrier No. (Brake) | 4 sets | |||
Wheel carrier No. (Running) | 2 sets | |||
Traction force @ 400bar | approx. 2x80 kN=160kN | |||
Brake force | approx. 4x55 kN=220kN | |||
Permitted Max driving speed | approx. 11.5km/h | |||
Tire | 16x355/65-15PR28 | |||
Steering angle | Rack and pinion, approx.+130°/ -100° | |||
Working Temperature | approx.-20°C〜+40°C | |||
Permitted platform bending moment | approx.+7700kNm/-6300kNm | |||

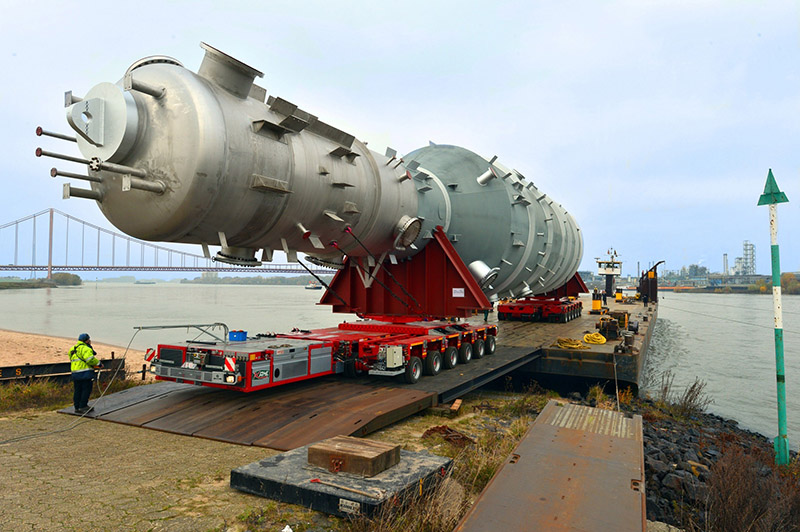

Shipping of Self Propelled Modular Trailer

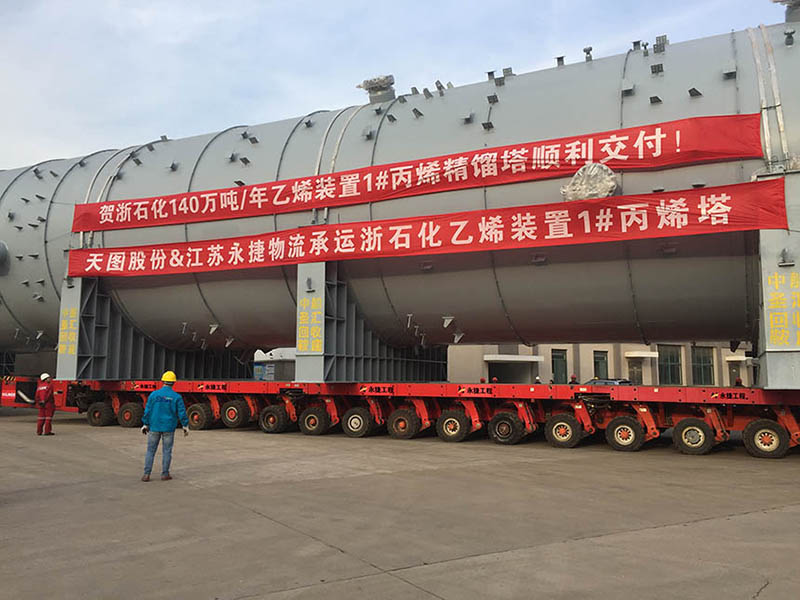

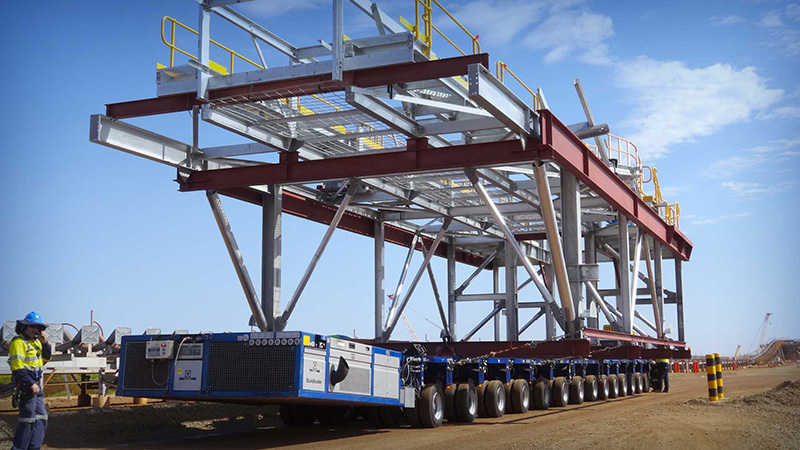

Application of Self Propelled Modular Trailer
Self propelled modular trailer,(hereinafter referred to as spmt, via man or woman or mixture modes, offer the dependable transport answer for oversize, non-detachable, overlength or overweight superstructure cargoes, such as offshore oil platform, module chemical plant, shipbuilding, nuclear and the transportation of chemical tanks. it's miles extensively used within the fields of oil&fuel, power, metallurgy, chemical industry, production, shipbuilding, marine engineering, and so on.
The self-propelled modular trailer adopts a slim body modular design, and the width of a unmarried module is 2430mm; the unmarried axle load can attain 40 lots, particularly appropriate for concentrated load transportation; spmt module delivery has the characteristic of multi vehicle merging, which can realise the smooth and tough connection of a thousand axle modules at most, and the maximum load capacity can reach almost 30000 tons; it has a diffusion of guidance modes consisting of directly, zigzag, oblique, important rotation, horizontal, the front swing, rear swing and so forth. the guidance modes of a single module and multi modules in spmt business enterprise are the identical.

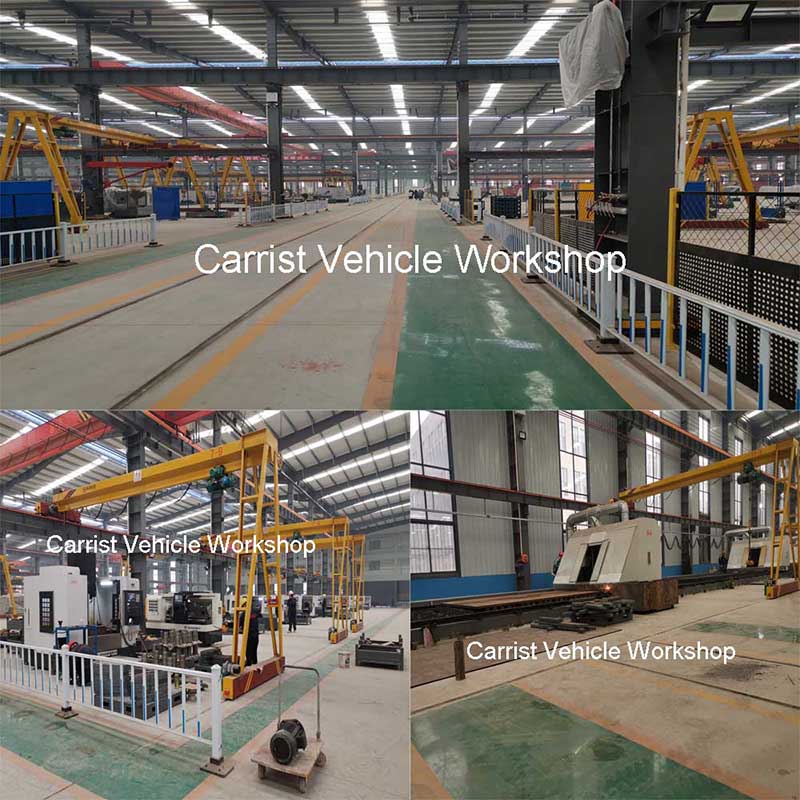

Workshop of Self Propelled Modular Trailer
