Girder Trailer

Features of Girder Trailer:

1.Normally the long girder length is about 20-60meters .The weight is about 30tons-400tons .There are box shape girder and T shape girder.We can design different kinds supports for loading different shape girders.

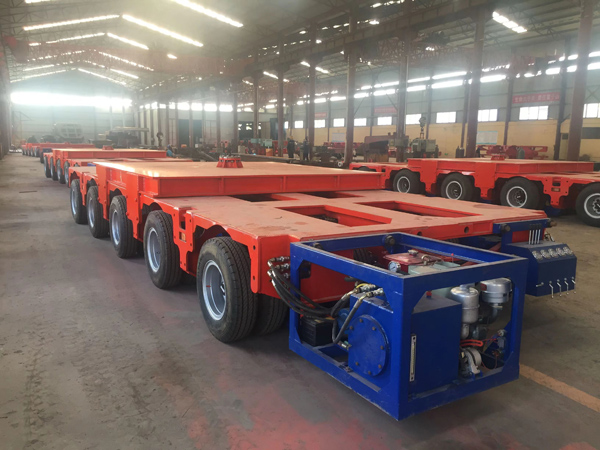

2.The trailer set has two parts: the front one should be towed by a prime mover or self-propelled. Rear part is like a steering dolly, could be equipped with a small diesel engine to realize manually steering.
3.The axles number and trailer beam design depends on the weight of the girder.

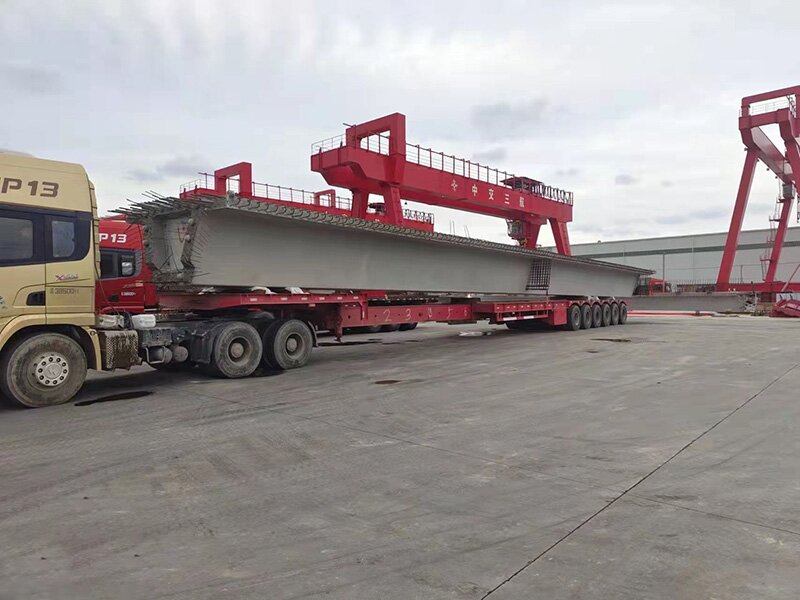

4.Long beam trailer is supporting launching girder and construct bridges, it fulfills the transport job between precast concrete bridge section yard to bridge construction site.
5.The trailer/transporter must be strong enough to load the long beam .


Contact Now E-Mail Telephone WhatsApp
Product Details

Girder Trailer,is a professional China Trailer manufacturer with brand “carrist”.Long beam trailer is a kind of trailer set to transport long cargoes by loading two ends of them, which is the most effective and economical way to transport long cargo like steel structure, long steel pipe, precast concrete beam and long bridge section.We have 2 kinds of solutions :Hydraulic steering long beam trailer and self-propelled girder transporter.


Girder trailer


Specification of Girder Trailer

Model

C

Dimension(Optional)

Axle No.

Rated   Load (kg)

Tire No.

Tire   Size

Dimension   Made by Customer Machine Size,

(contact   supplier for more)

1

15

4



825R20   1000R20 1100R20 1200R20 12R22.5

2

40

8

3

60

12

4

80

16

Manufacture

Carrist   Vehicle

Wheel   Base  (mm)

1310

leaf-spring   Pcs

10

Axle

13/16/18   T

Suspension

Heavy   Duty Mechanic Suspension with Leaf Springs

Main   Beam Material

Q345B   manganese plates, automatic submerged arc welded

Brake   System

Dual   line braking system with automatic braking system/chambers

Brake   Air Chamber

Double   Model

Kingpin

2' or   3.5' Interchangeable

Landing   gear

28T   loading capacity with 80T static lifting capacity.

Platform

4-6 mm   diamond steel plate

Brake   System

Dual   Lines Braking System With Automatic Air Chambers

Brake   Air Chamber

Four   double and two single chamber

Electrical   System

24V,   7core socket, lights according to European standards.



Mainbeam   Size

Upper   plate

14mm

Lower   plate

16mm

Mid Web

8 mm

Height

500-520mm

Pin   Height

According   to the height of the tractor saddle.

Painting

Three   coats painting; Any color will be available

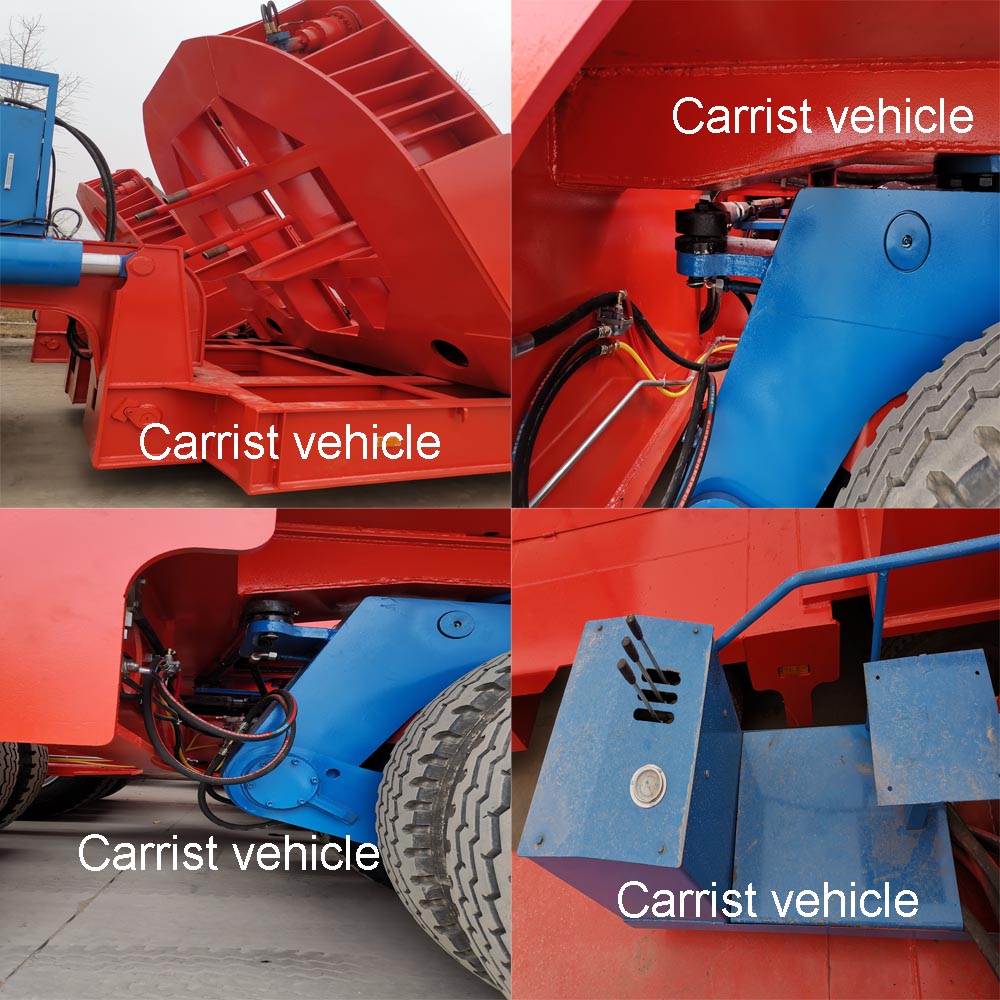

Details of Girder Trailer

Girder Trailer

Girder Trailer
