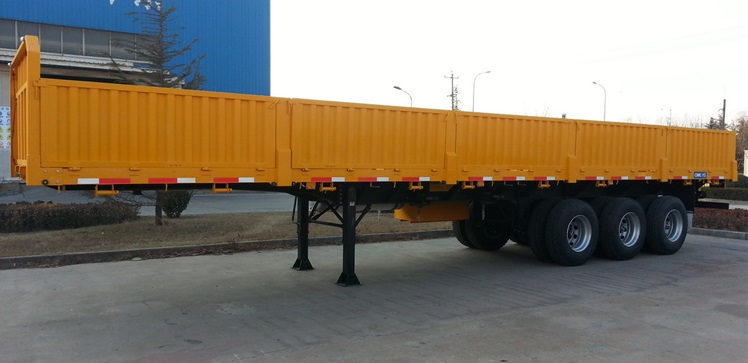

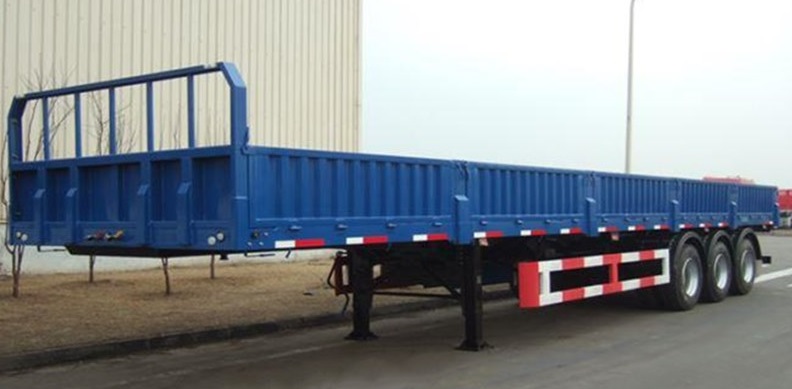

Sidewall Flatbed Semi Trailer
2023/11/29 21:36
| Manufacture | Carrsit Vehicle |
| Model | CVT |
| Axle NO | 3 pcs |
| Wheel Base | 7380+1320+1320 (mm) |
| Outside Dimension | 12450X2500X1580 L×W×H (mm) |
| Tyre specifications | 12.00R20 14PR Radio Tire |
| Tyre No | 12 |
| leaf-spring Pcs | 12 pcs |
| Axle load | 13 T |
| Suspension | Mechanic Heavy Duty Leaf Spring Suspension |
| Material & Thickness | main beams Q345B/ST52-3 / through cross beams Q235 / Main beam Height: 500 mm / Upper flange : 14mm / Mid web : 8 mm / Lower flange: 16mm Side Beam: 160 mm |
| Brake System | Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Payload | 50Tons |
| Head Wall | 1200mm |
| Tool Box | 1 box of standard tools |
| Spare tire carrier | 1 set |
| Color and Logo | Depends on the buyer’s requirement. |
| The traction pin | 3.5’ or 2’ |
| Pin Height | According to the height of the tractor saddle. |
| Tare Weight | 6.9 Tons |
| Floor | 4mm diamond plate |
